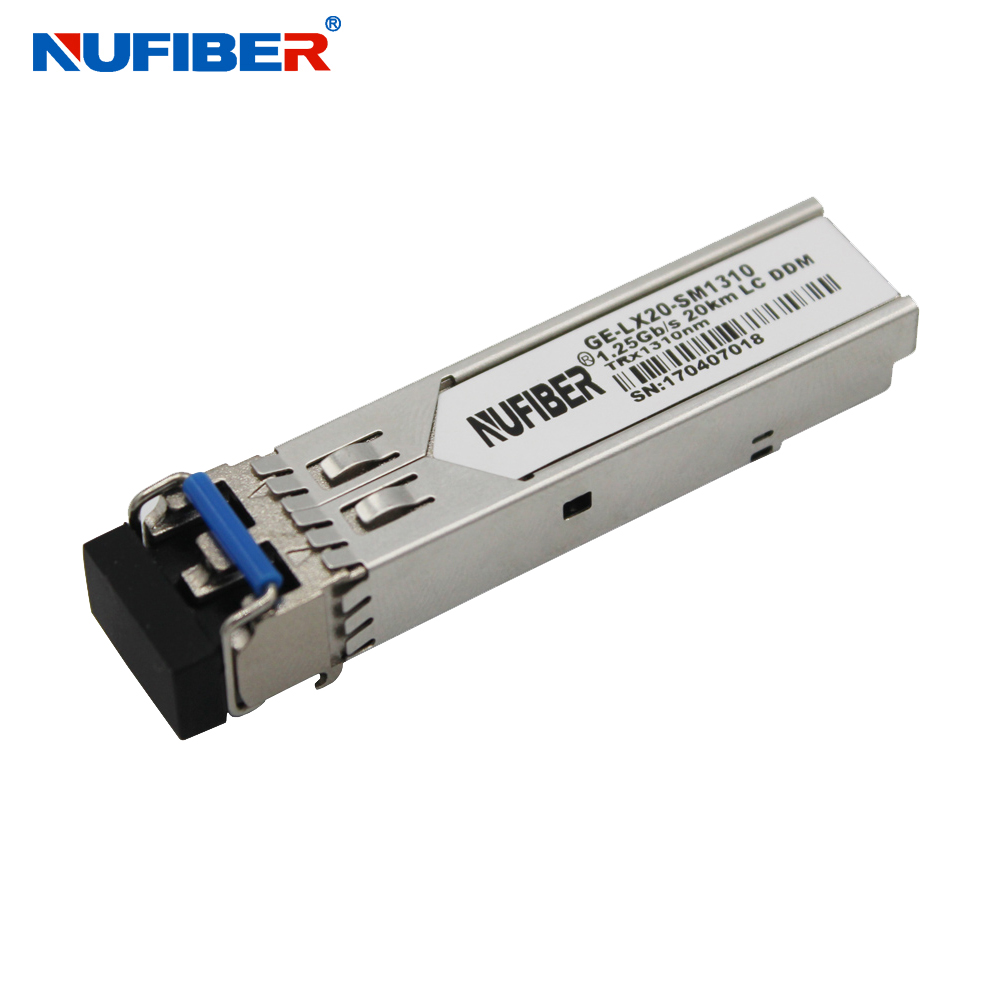

1.25G 2.5G 10G 40G 100G Dual Mode Huawei SFP Module

Brand Name : NuFiber

Model Number : GE-LX20-SM1310

Certification : CE FCC

Place of Origin : China

MOQ : 1 piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000 pcs per month

Delivery Time : 1-3 work days

Packaging Details : 10pcs/plastic bag, 200pcs/carton

Product name : 1.25Gbs SFP transceiver

Wavelength : TRX 1310nm

Distance : 0~20KM

Connector : Duplex LC

DDM : Yes

Fiber Type : Singlemode Dual fiber

Compatibility : Mikrotik,Cisco, Huawei, HP,Aruba,Juniper etc.

Manufacturer : Yes

Working Temp. : 0~71℃

Warranty : 1 year

Contact Now

Optical Transceiver Huawei Sfp Module Price 1.25G/2.5G/10G/40G/100G Dual Mode Sfp Fiber Transceiver Module

Key Features

  • Up to 1.25Gb/s Data Links
  • Hot-Pluggable
  • Duplex LC connector
  • Up to 20km on 9/125μm MMF
  • 131nm FP laser transmitter
  • Single +3.3V Power Supply
  • Monitoring Interface Compliant with SFF-8472
  • Maximum Power <1W
  • Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
  • RoHS compliant and Lead Free

Applications

  • Metro/Access Networks
  • 1.25 Gb/s 1000Base-LX Ethernet
  • 1×Fiber Channel
  • Other Optical Links

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λc 1270 1310 1360 nm
Spectral Width(RMS) σRMS 3 nm
Optical Output Power Pout -9 -3 dBm 1
Extinction Ratio ER 8.2 dB
Optical Rise/Fall Time tr / tf 260 ps 2
Relative Intensity Noise RIN -120 dB/Hz
Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength λc 1260 1360 nm
Receiver Overload Pol -3 dBm 4
RX Sensitivity Sen -24 dBm 4
RX_LOS Assert LOS A -35 dBm
RX_LOS De-assert LOS D -25 dBm
RX_LOS Hysteresis LOS H 0.5 dB
General Specifications:
Data Rate BR 1.25 Gb/s
Bit Error Rate BER 10-12
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s LMAX 20 km
Total System Budget LB 15 dB

Ordering information

Model Description
GE-SX-MM850 1.25G MM Dual fiber 850nm SX DDM LC 0.5km
GE-SX-MM1310 1.25G MM Dual fiber 1310nm SX DDM LC 2km
GE-LX20-SM1310 1.25G SM Dual fiber 1310nm LX DDM LC 20km
GE-EX40-SM1310 1.25G SM Dual fiber 1310 DFB DDM LC 40km
GE-ZX80-SM1550 1.25G SM Dual fiber 1550 DFB DDM LC 80km
GE-ZX120-SM1550 1.25G SM Dual fiber 1550 DFB DDM LC 120km
GE-BX03-SM1310S 1.25G 1310nmTx/1550nmRx BIDI SMF SC 3KM
GE-BX03-SM1550S 1.25G 1550nmTx/1310nmRx BIDI SMF SC 3KM
GE-BX20-SM1310 1.25G 1310nmTx/1550nmRx BIDI SMF LC 20KM
GE-BX20-SM1550 1.25G 1550nmTx/1310nmRx BIDI SMF LC 20KM
GE-BX40-SM1310 1.25G 1310nmTx/1550nmRx BIDI SMF LC 40KM
GE-BX40-SM1550 1.25G 1550nmTx/1310nmRx BIDI SMF LC 40KM
GE-BX60-SM1310 1.25G 1310nmTx/1550nmRx BIDI SMF LC 60KM
GE-BX60-SM1550 1.25G 1550nmTx/1310nmRx BIDI SMF LC 60KM
GE-BX80-SM1310 1.25G 1490nmTx/1550nmRx BIDI SMF LC 80KM
GE-BX80-SM1550 1.25G 1550nmTx/1490nmRx BIDI SMF LC 80KM
GE-BX120-SM1490 1.25G 1490nmTx/1550nmRx BIDI SMF LC 120KM
GE-BX120-SM1550 1.25G 1550nmTx/1490nmRx BIDI SMF LC 120KM


Product Show

1.25G 2.5G 10G 40G 100G Dual Mode Huawei SFP Module1.25G 2.5G 10G 40G 100G Dual Mode Huawei SFP Module

1.25G 2.5G 10G 40G 100G Dual Mode Huawei SFP Module

Packaing & Shipping

1.25G 2.5G 10G 40G 100G Dual Mode Huawei SFP Module

1.25G 2.5G 10G 40G 100G Dual Mode Huawei SFP Module

Factory Show

1.25G 2.5G 10G 40G 100G Dual Mode Huawei SFP Module
